Difficulty Level: Intermediate 2️⃣

Metric legs are now available. 5mm aluminum. ever so slightly thicker at 45mm where spec are 44.45mm. everything else is the same at imperial version parts. shoulder hydraulics cavity are also slightly smaller at ...

from when we did the initial design, we had to work on lowering weight and costs. ideas were tossed about. her are a few pics of that process.

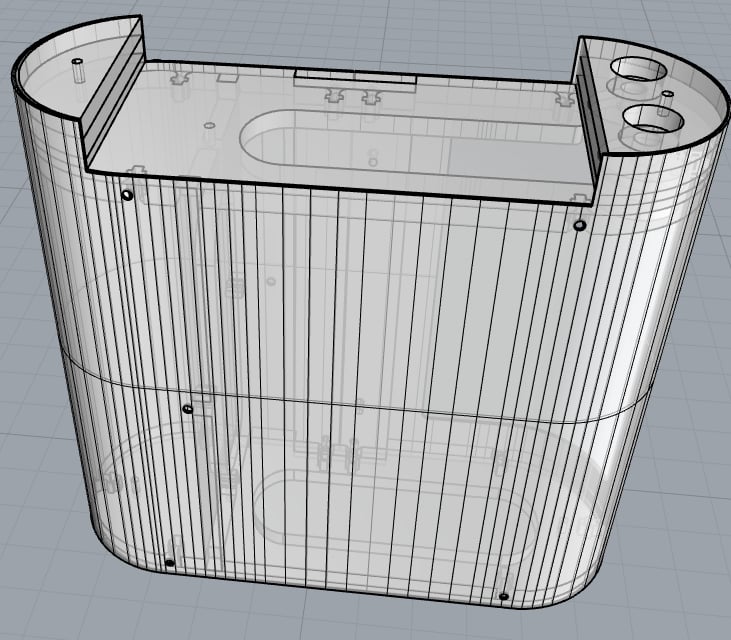

new design and remake. only 6 original pieces! these are still beta and upon approval, DXF will be released.

these are the alpha version for CSR ESB battery boxes. ANH will follow after testing. uses m3 nuts and bolts.

ill repost the files... these were downsized to 40% sorry big time.

my OG stl were 40%... i hope i sent the full size files!!

utility arm box.... this one is a doozie still. still thinking about how to mount... magnets or nut and bolt at the base... or both. only thinking magnets could pull out when some civilian yanks on the arms too much when shaking hands.... both will mean not all the weight will be on the bolt as ...

the breadpans... still need to make allowances for the hinges... i have designed a hinge extension but these give me feedback for if a tool can be placed inside

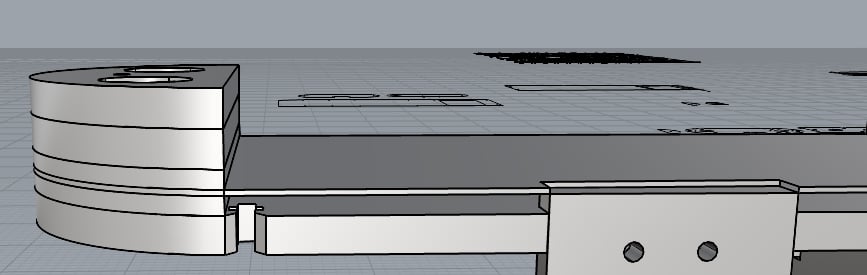

here are the rear door files. no magnet holes yet so will wait for some advise on where to put them. the side of the door has about 6mm (0.25") for 2 3mm (0.125") magnets. i thinking 1 on the frame side 1 on the door. 1 magnet will need to be reversed so it will stick. thin washers can be used for ...

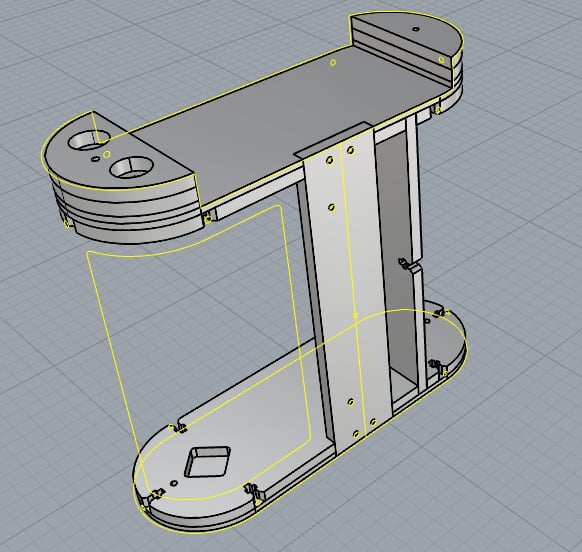

Rough frame assembly guide. of course it will change with thicker material to how i did the OG version but thats why we test and test. thanks everyone.
