Light Saber Wall Mounts

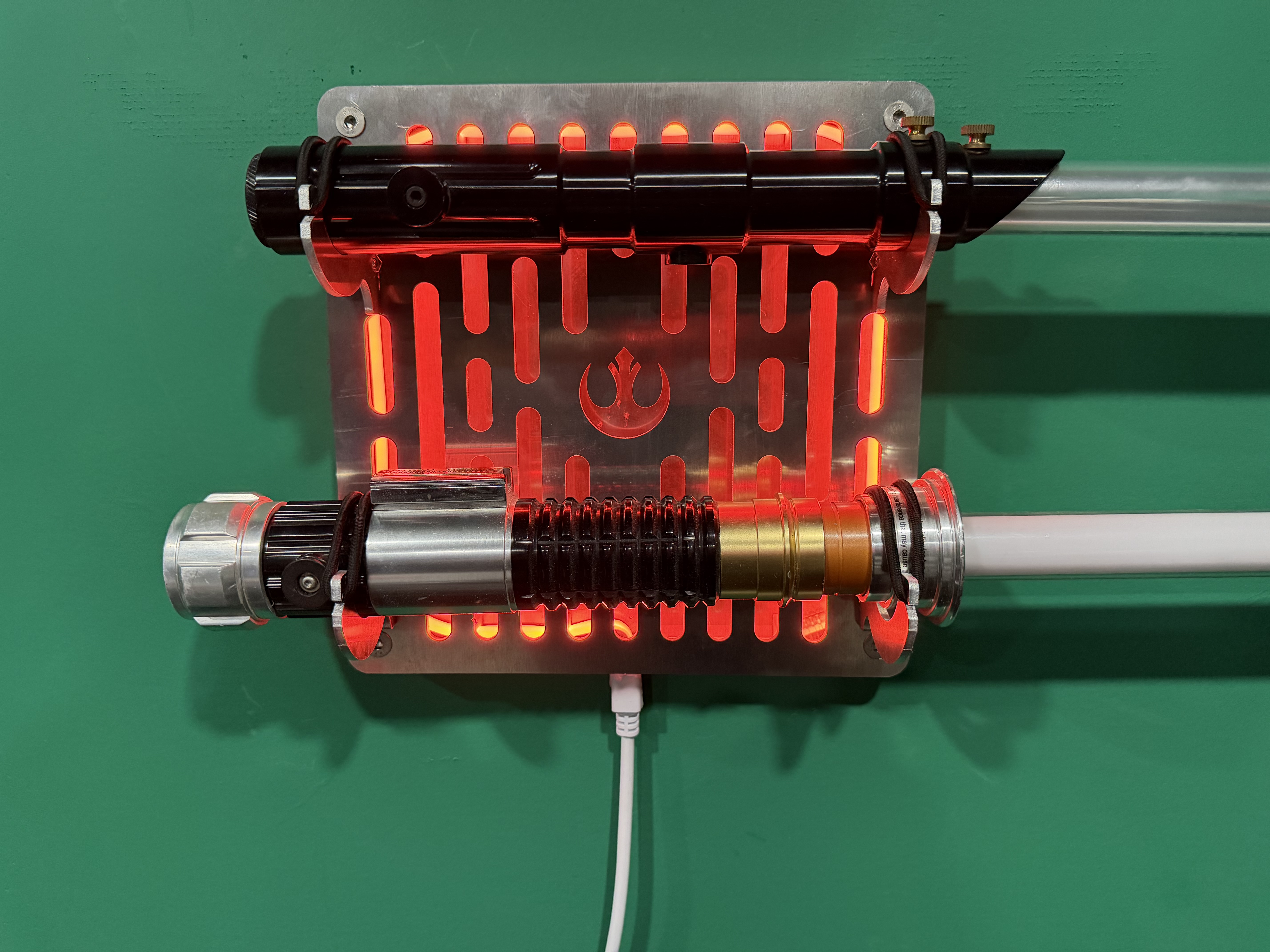

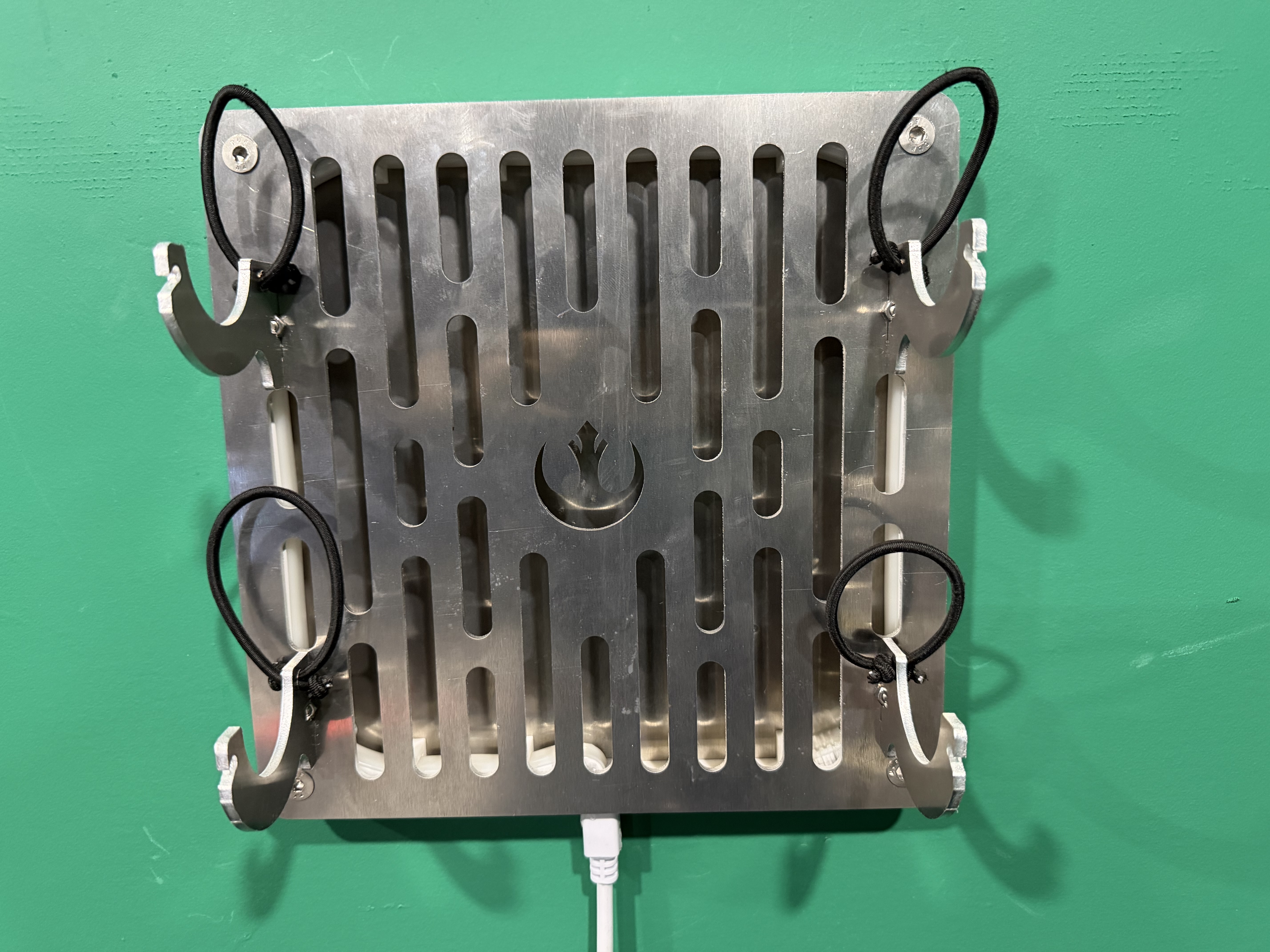

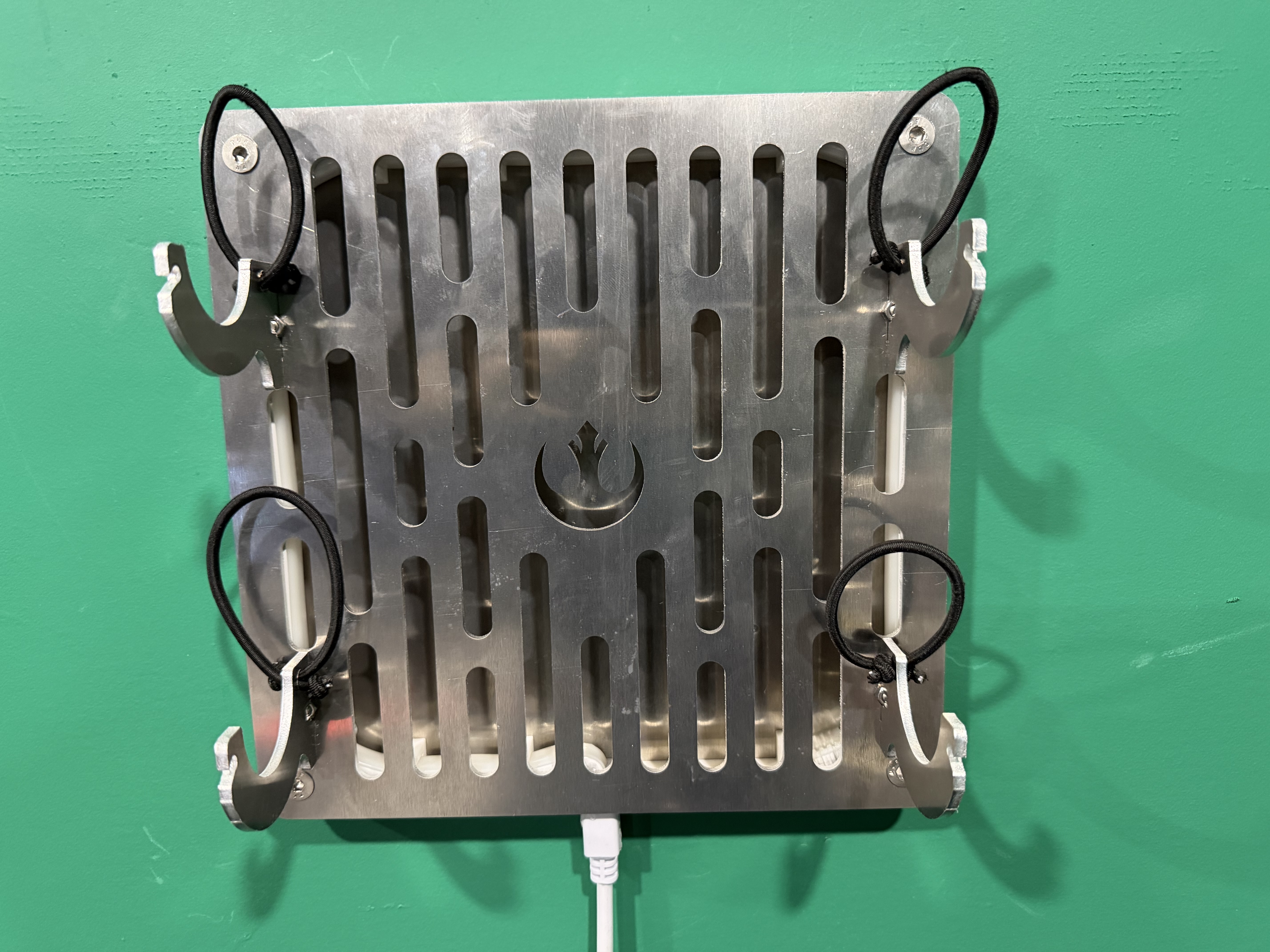

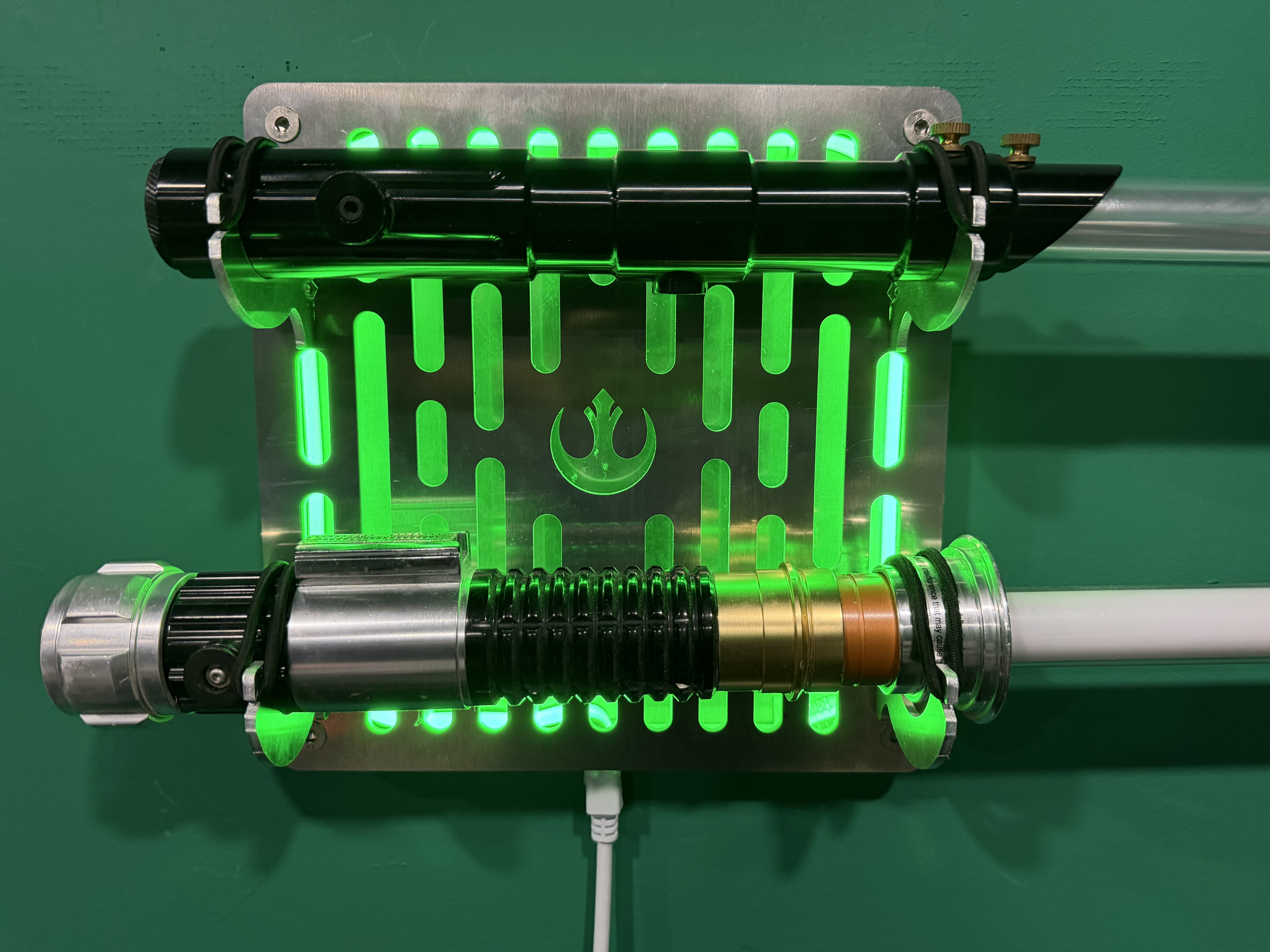

Wall Mounts To unleash your inner Jedi or Sith who am I to judge. These are complete kits to either 3d print or waterjet cut the files to display your sabers.


3d Printed Files

Light Saber Wall Mount.zip

(223.17 KiB) Downloaded 15 times

Aluminum Water Jet Links

https://marketplace.sendcutsend.com/p/C ... bel-legion

https://marketplace.sendcutsend.com/p/C ... ial-legion



LED inner spacer Mount
I will create a mount for No LED's as well. If you guys find another LED type you prefer let me know and I will create a spacer for it.

Light Saber Wall Mount LED Spacer.stl

(45.39 KiB) Downloaded 9 times

LED's for Mount
https://a.co/d/0gFbCGo0


Parts Needed

Optionally I have put the part names as well as the links in case you want to get them from Amazon.

4 X Zinc-Plated Medium-Strength Steel Coupling Nut, Class 8, M6 x 1 mm Thread Size
https://www.mcmaster.com/90009A221/
4 X 18-8 Stainless Steel Hex-Drive Flat Head Screw, M4 x 0.7 mm Thread Size, 8 mm Long
https://www.mcmaster.com/92125A188/
4 X Corrosion-Resistant 18-8 Stainless Steel Hex Nut, M4 x 0.7 mm Thread Size
https://www.mcmaster.com/91828A231/
4 X 316 Stainless Steel Hex-Drive Flat Head Screw, 90 Degree Countersink, M6 x 1 mm Thread Size, 8 mm Long (These come in packs of 25 only 1 pack is needed)
https://www.mcmaster.com/93395A349/
4 X 316 Stainless Steel Hex-Drive Flat Head Screw, 90 Degree Countersink, M6 x 1 mm Thread Size, 12 mm Long (These come in packs of 25 only 1 pack is needed)
https://www.mcmaster.com/93395A354/
1 Bungie Cord 4mm (Optional)
https://a.co/d/0bx33LdK

[Marc ph]

Installation instructions

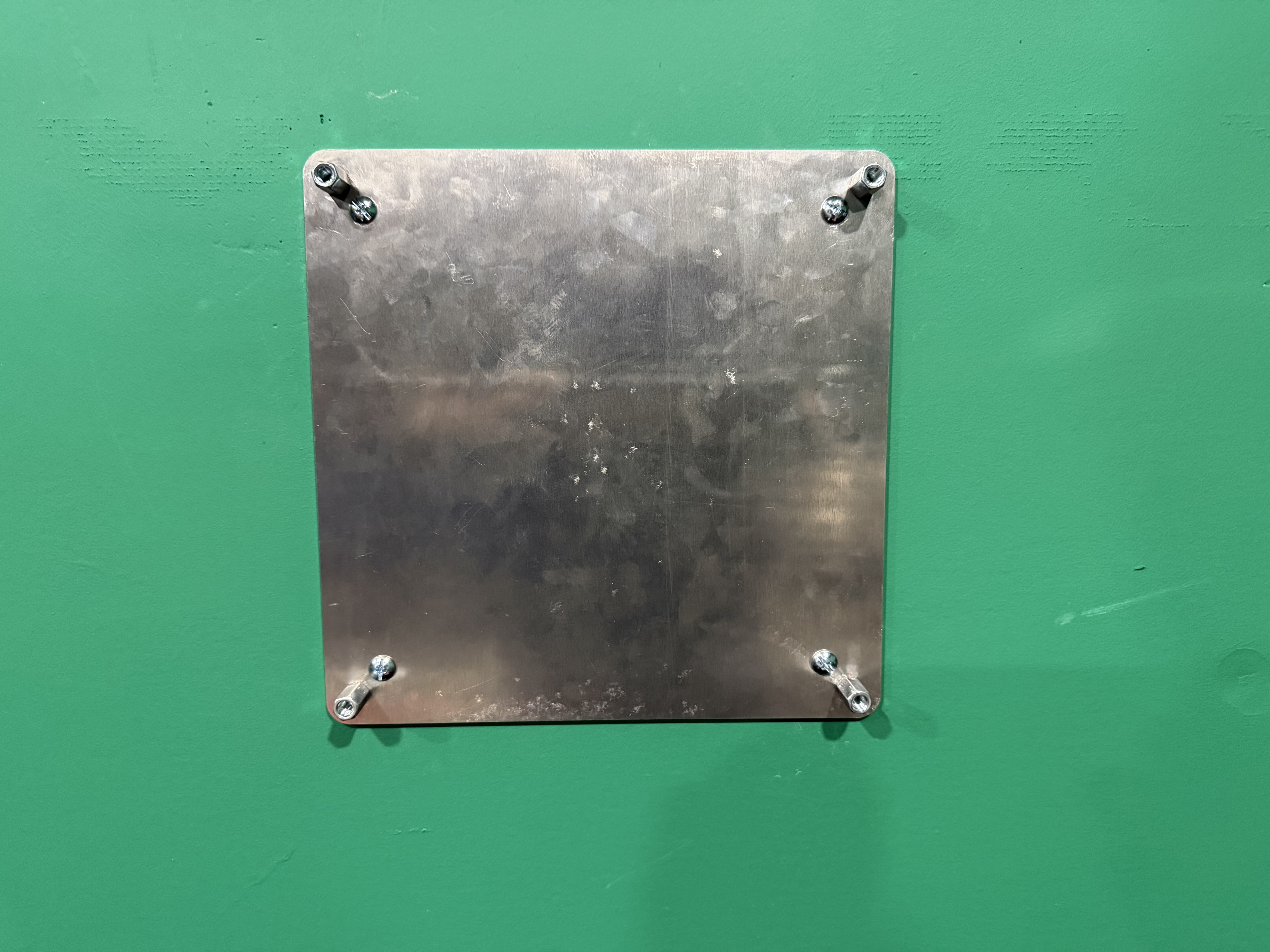

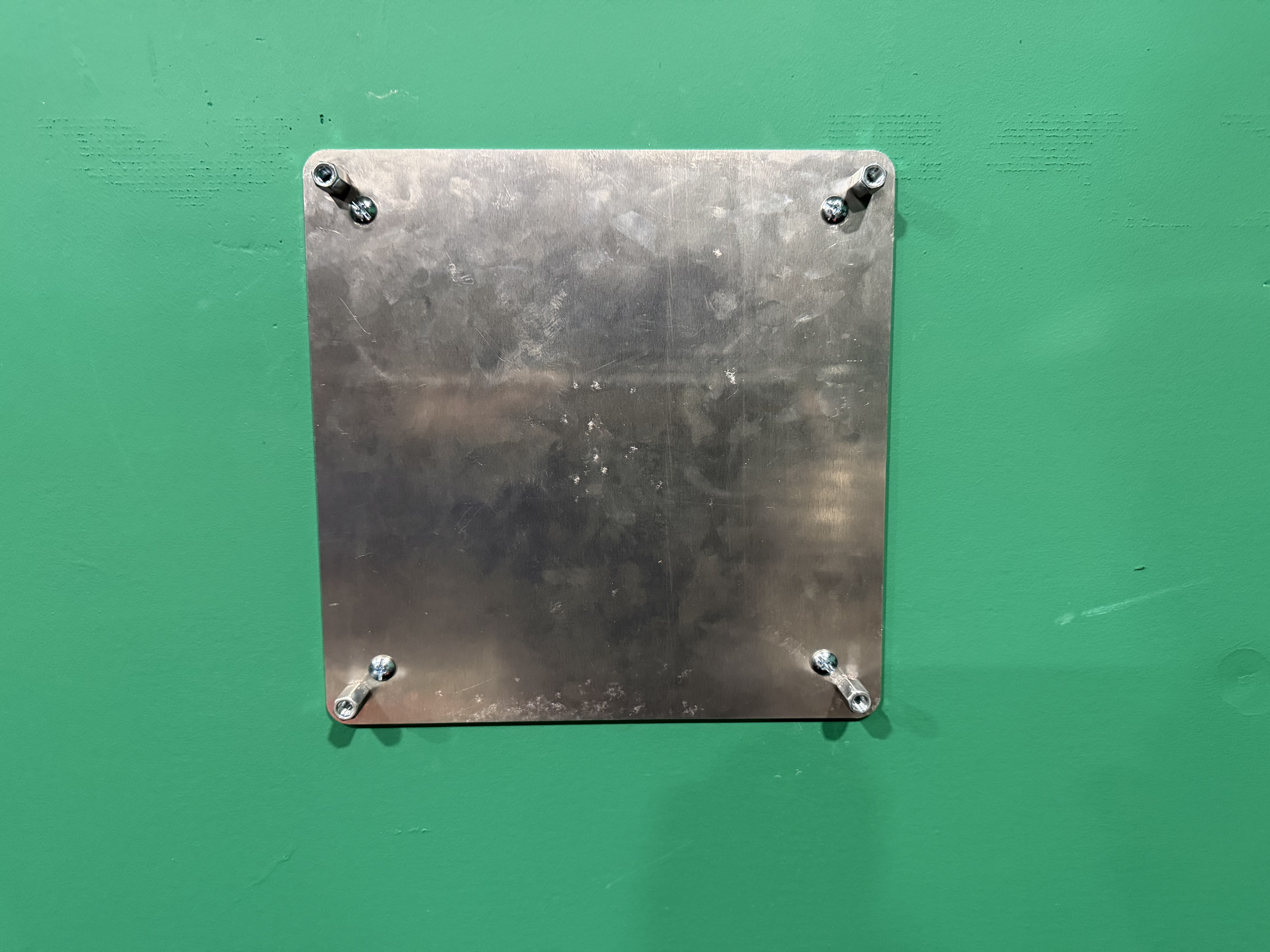

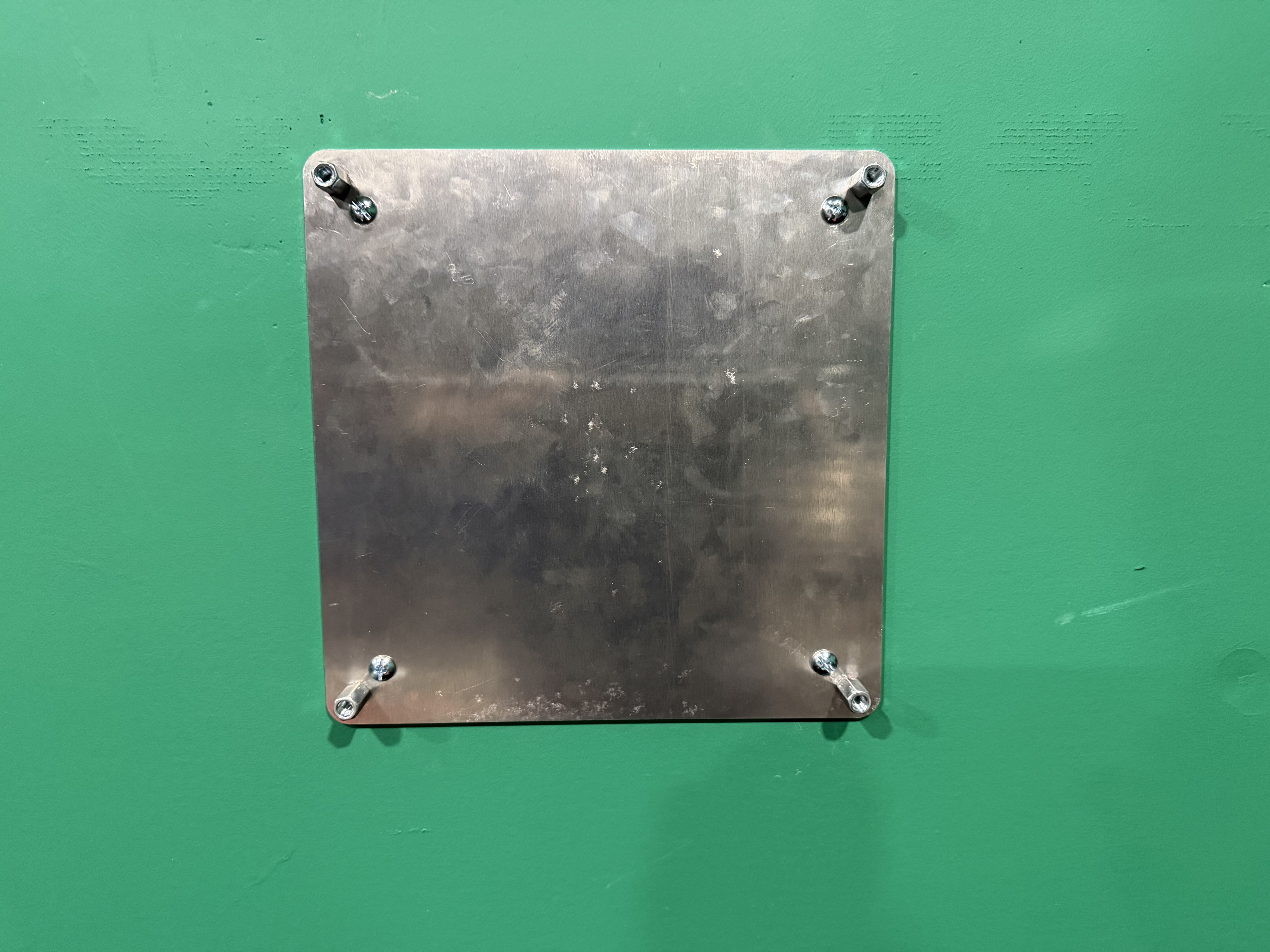

Step 1: Using wall anchors mount the back plate to the wall keep in mind the direction you want the sabers to face ( Left, Right or Left and Right )

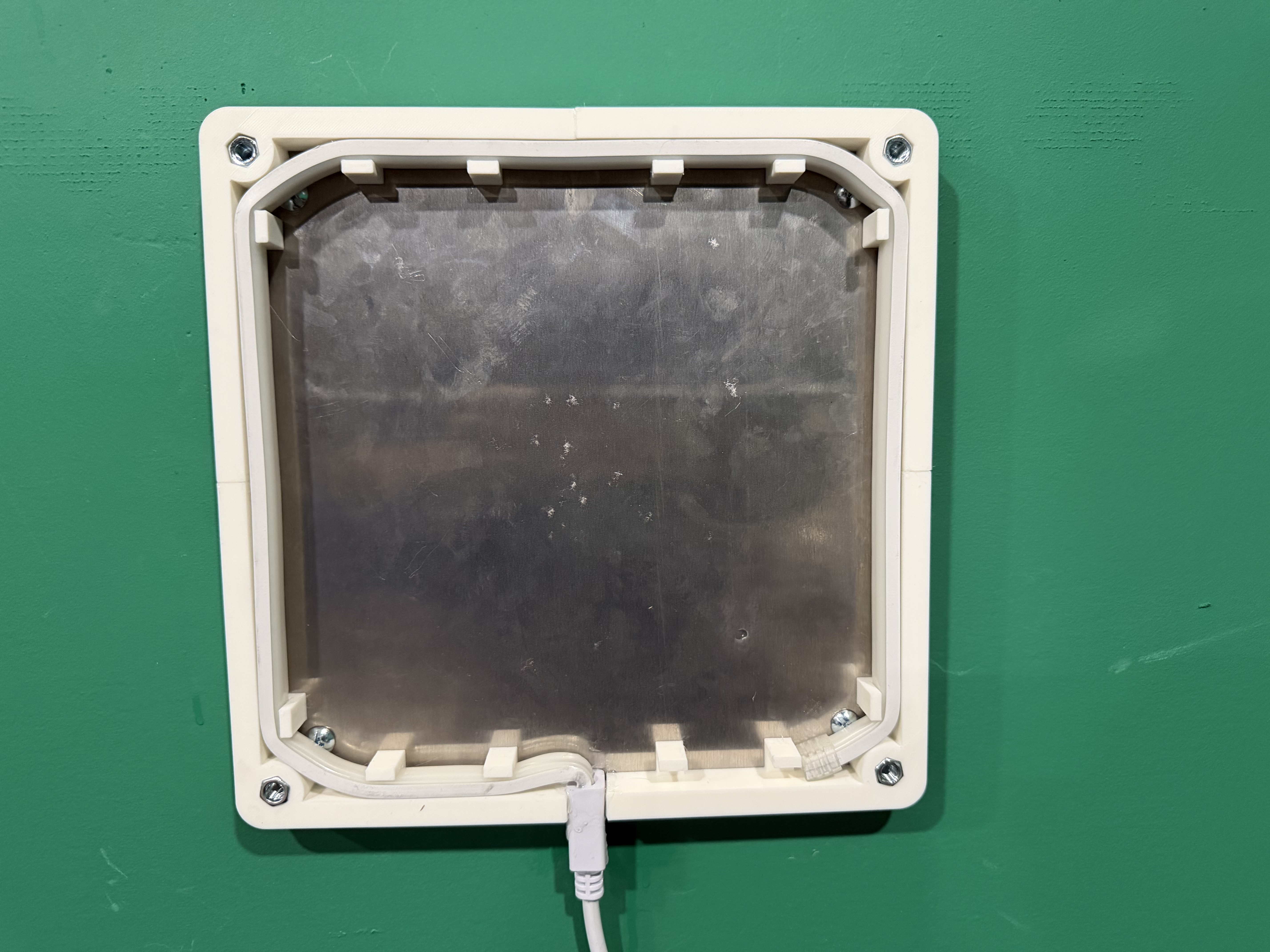

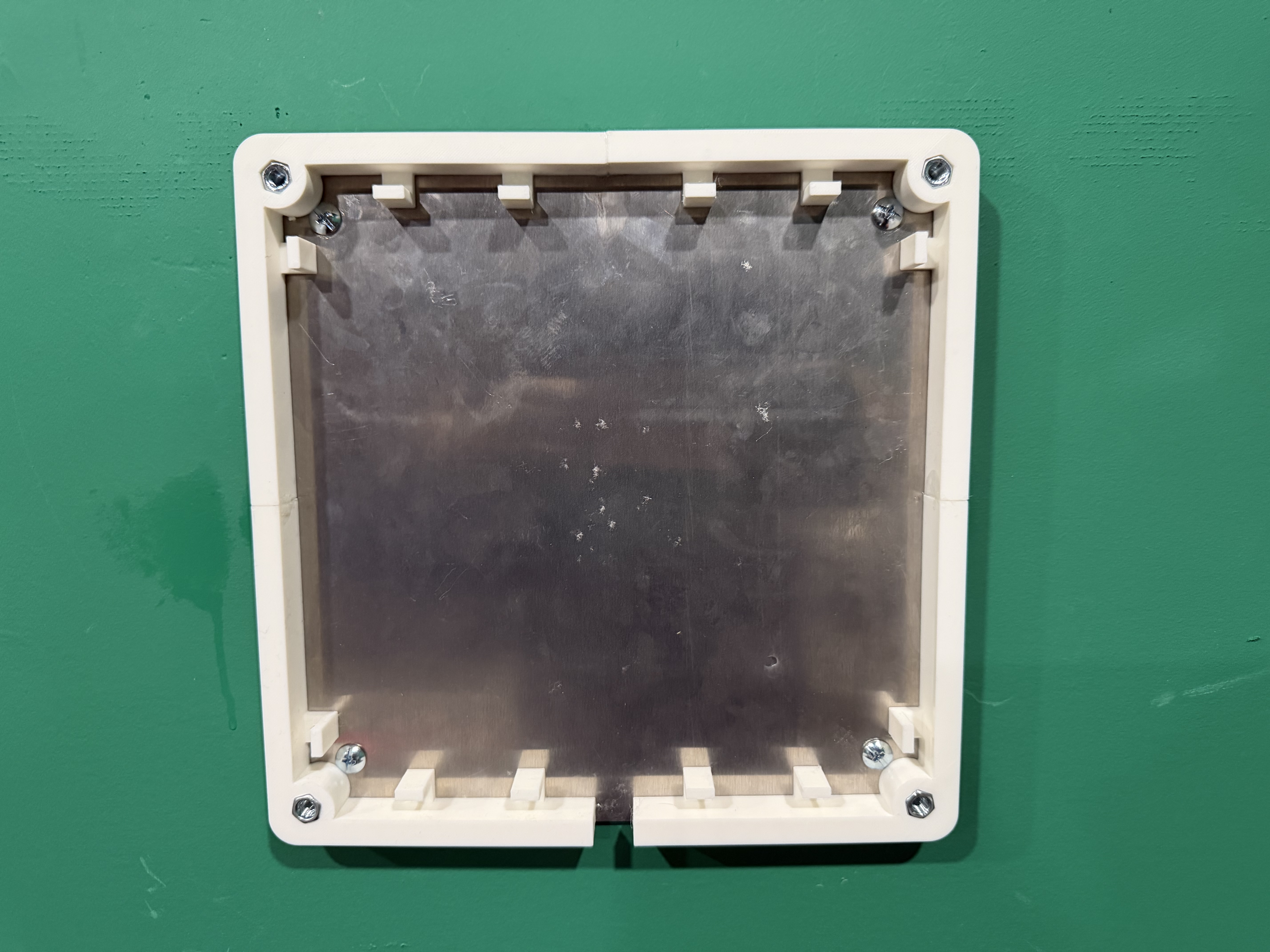

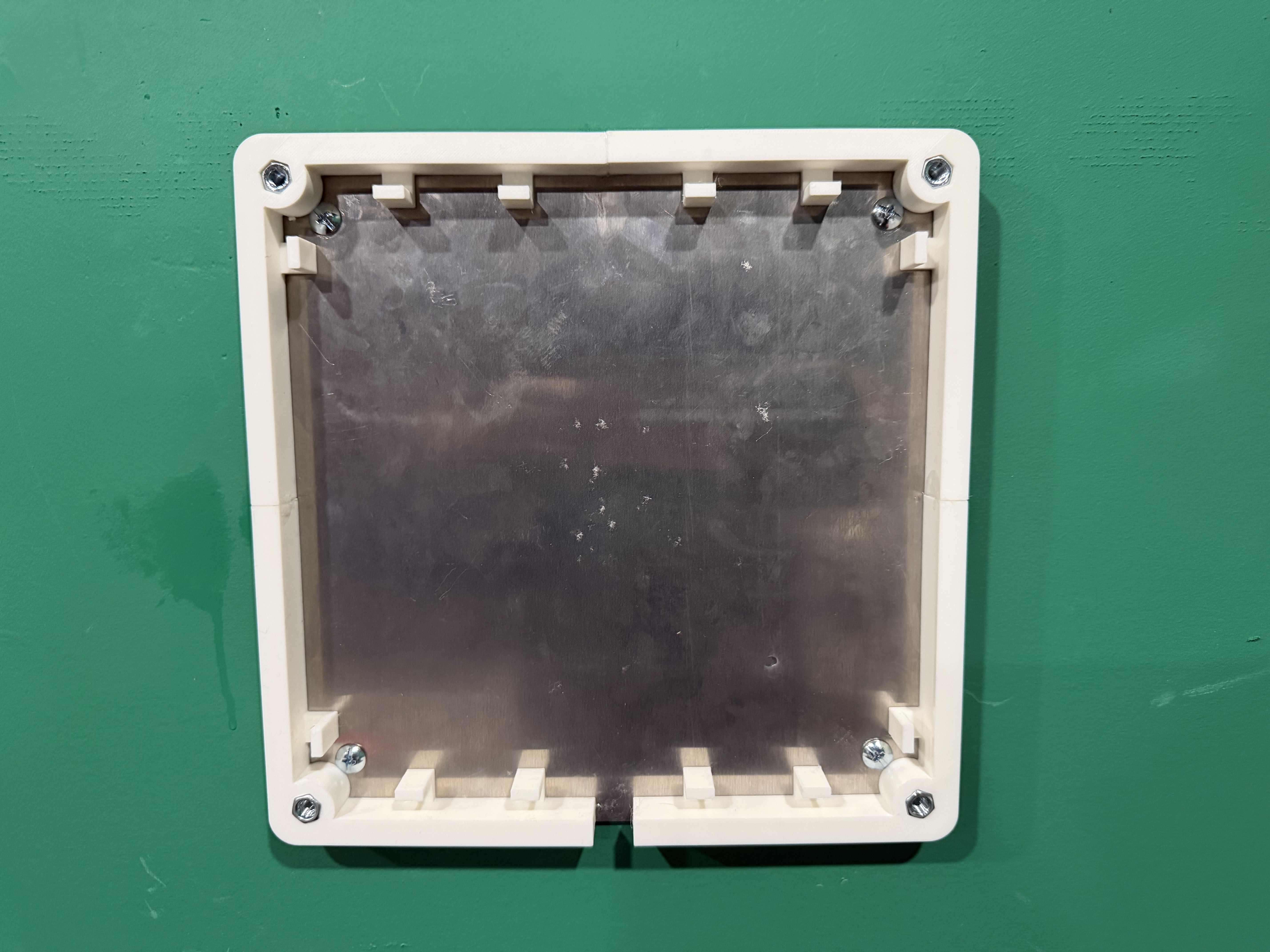

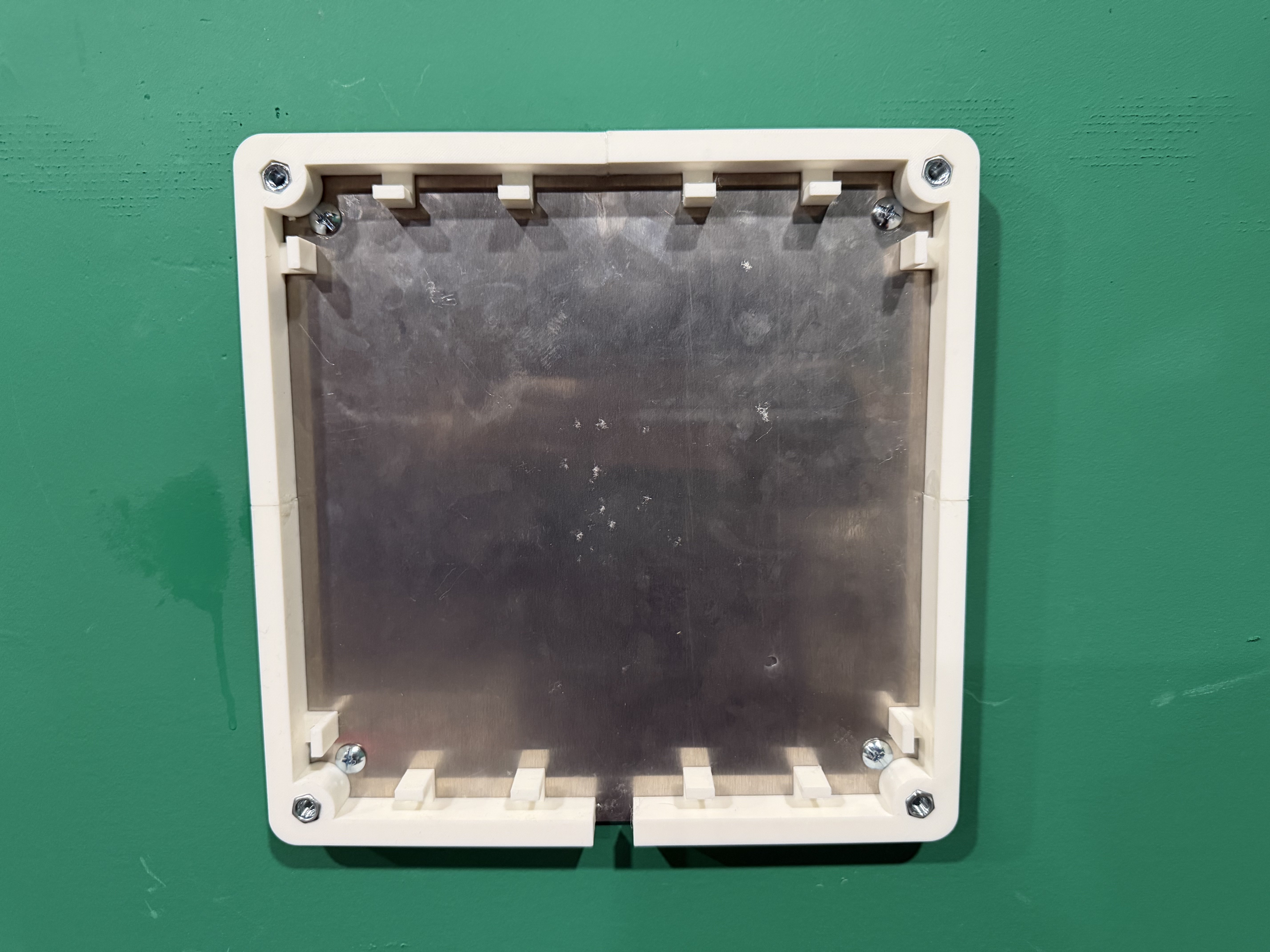

Step 2: Next Mount the LED Spacer onto the hex nuts. (you should have ensured proper nut alignment prior to mounting to the wall)

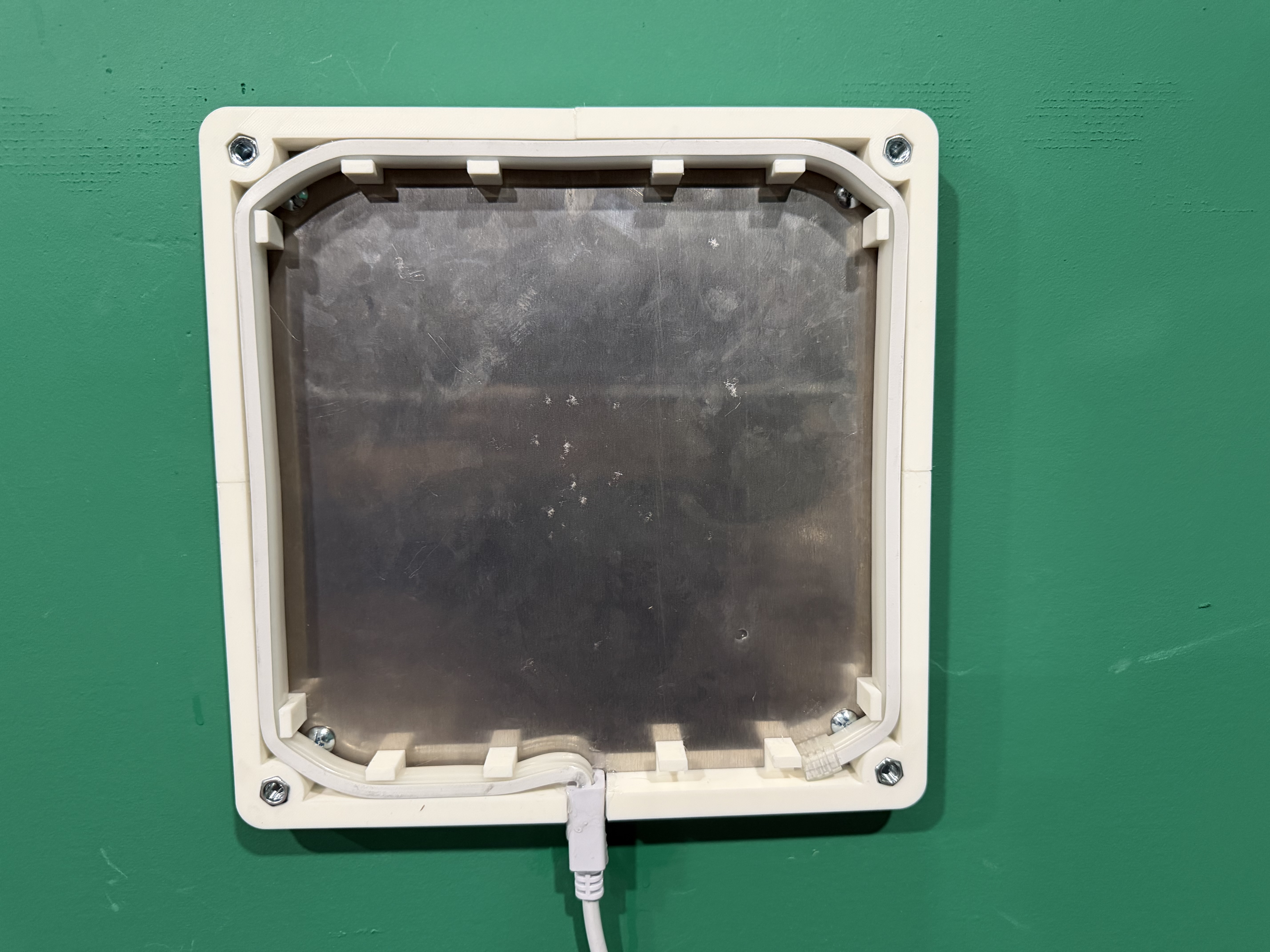

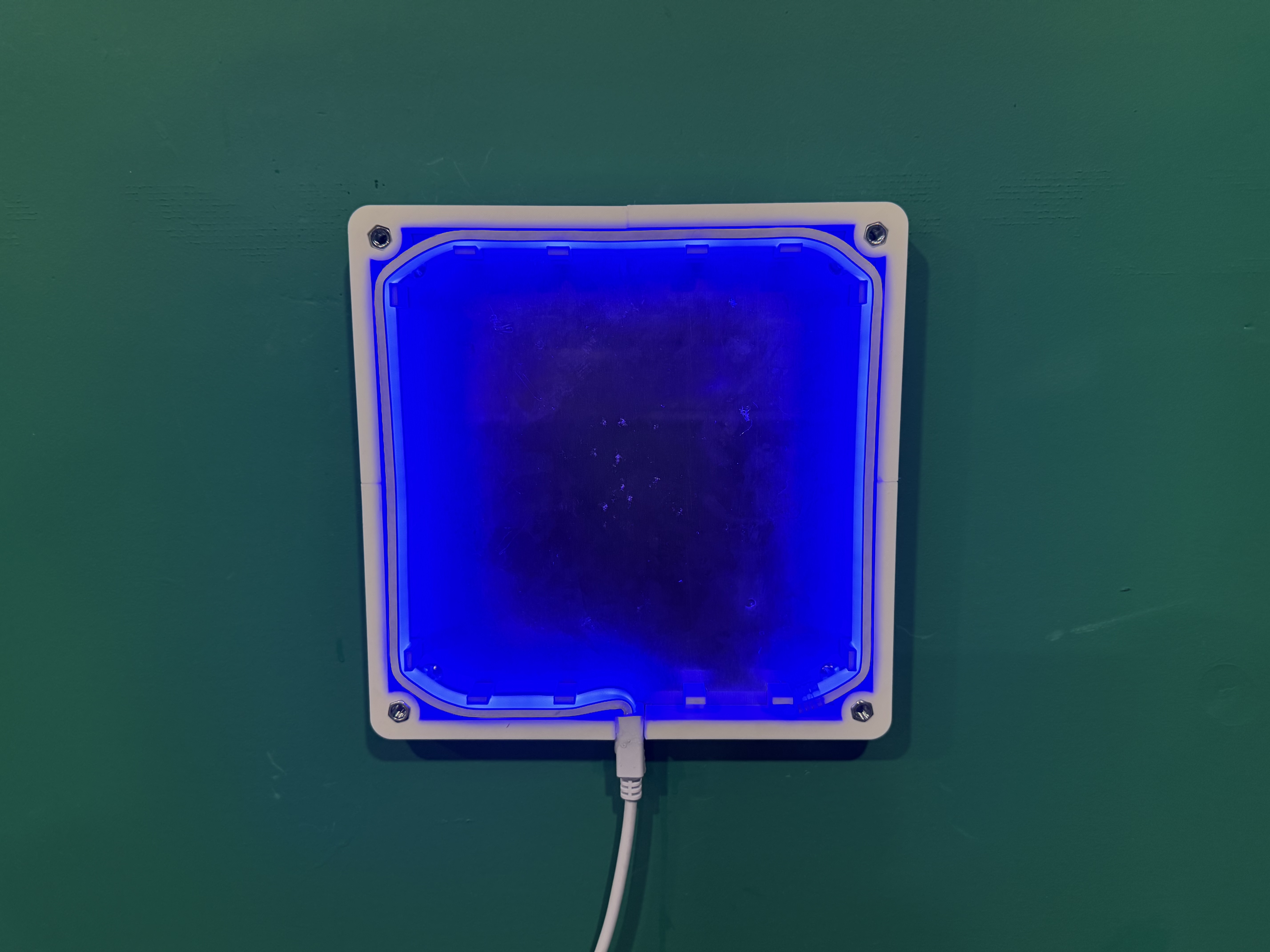

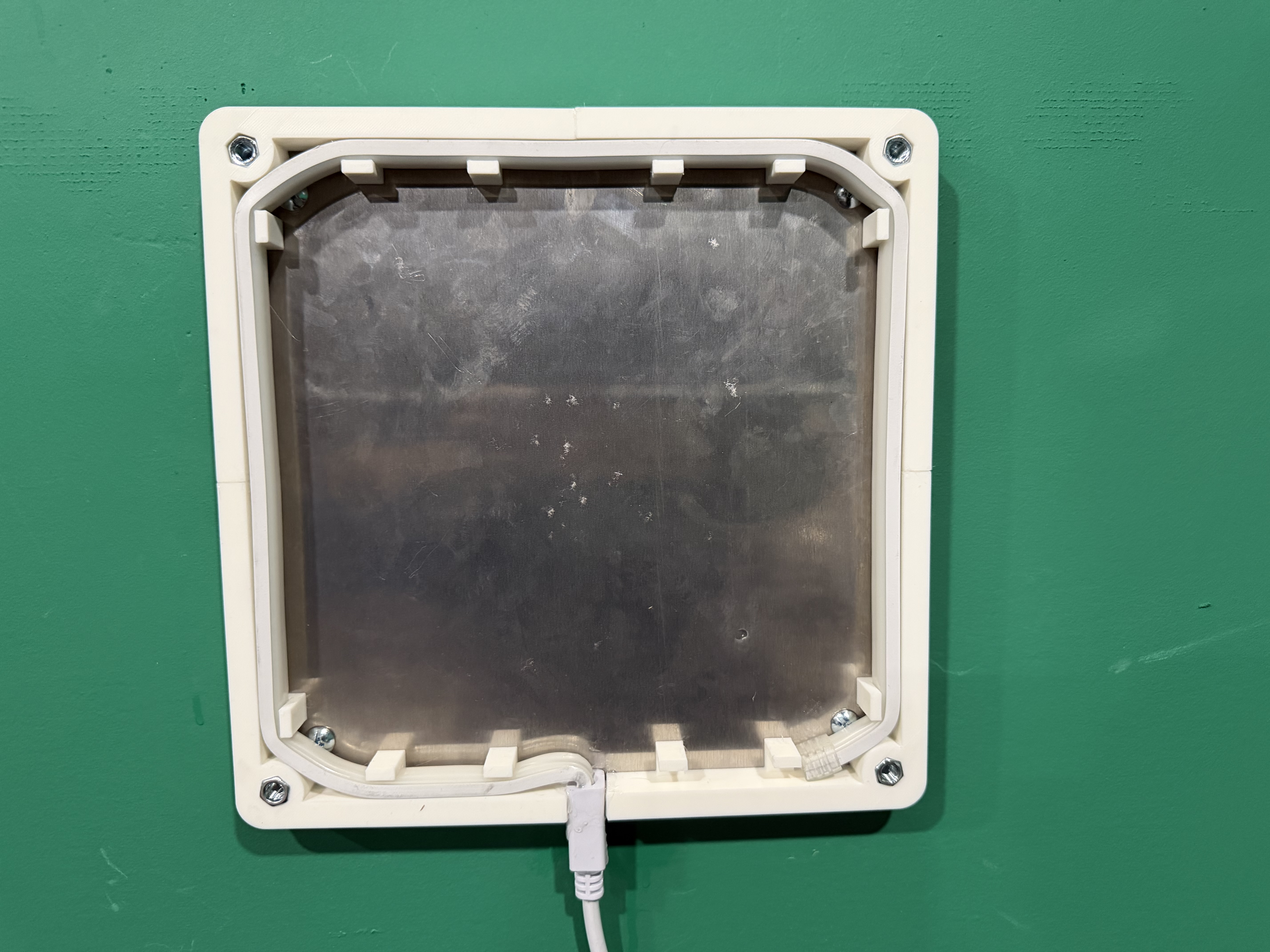

Step 3: Glue the square piece for the led strip at the opening and route the LED's long the inside

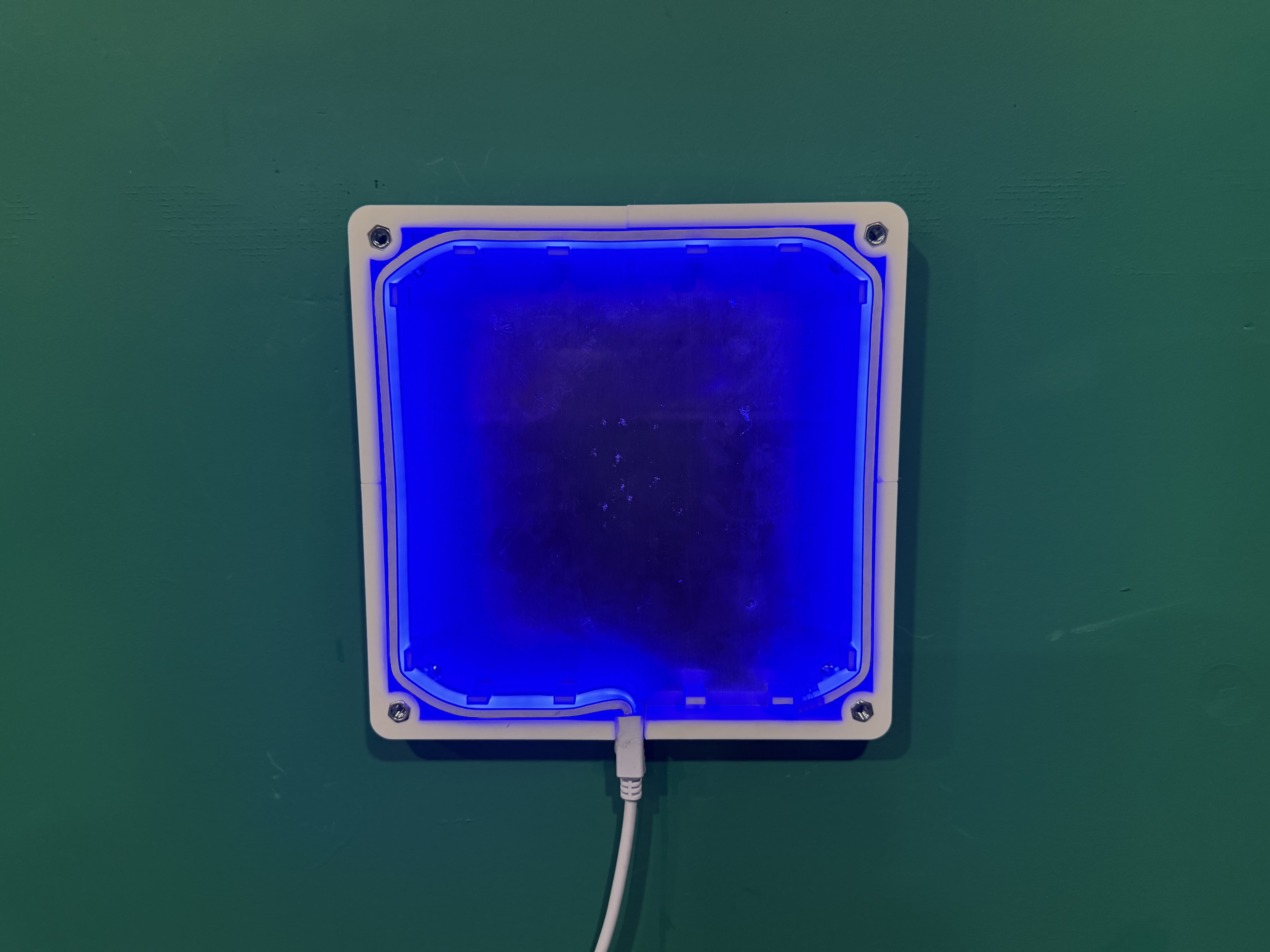

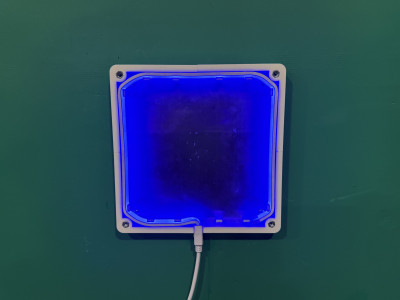

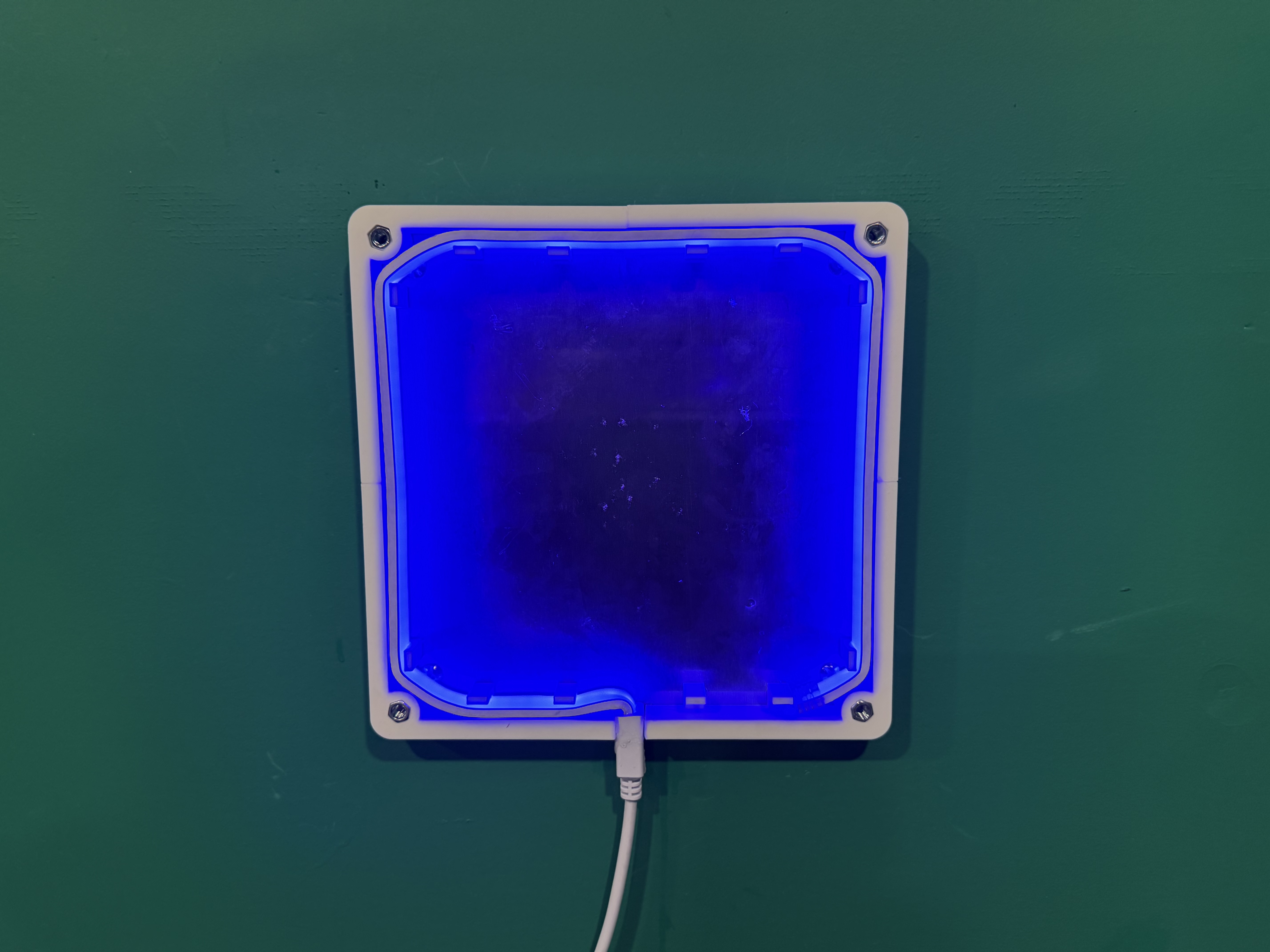

Step 4: Make sure you have the LED's routed and test with power

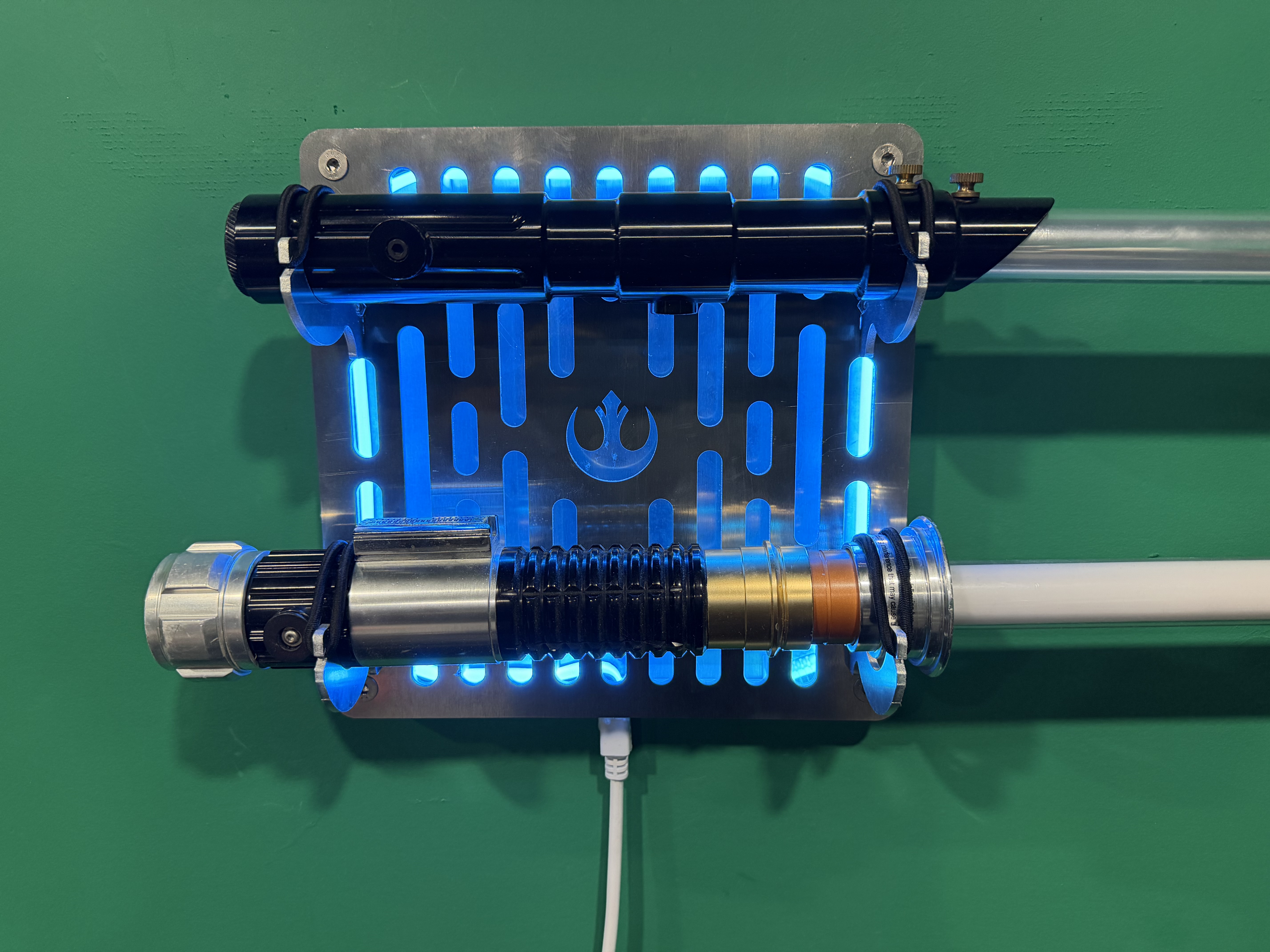

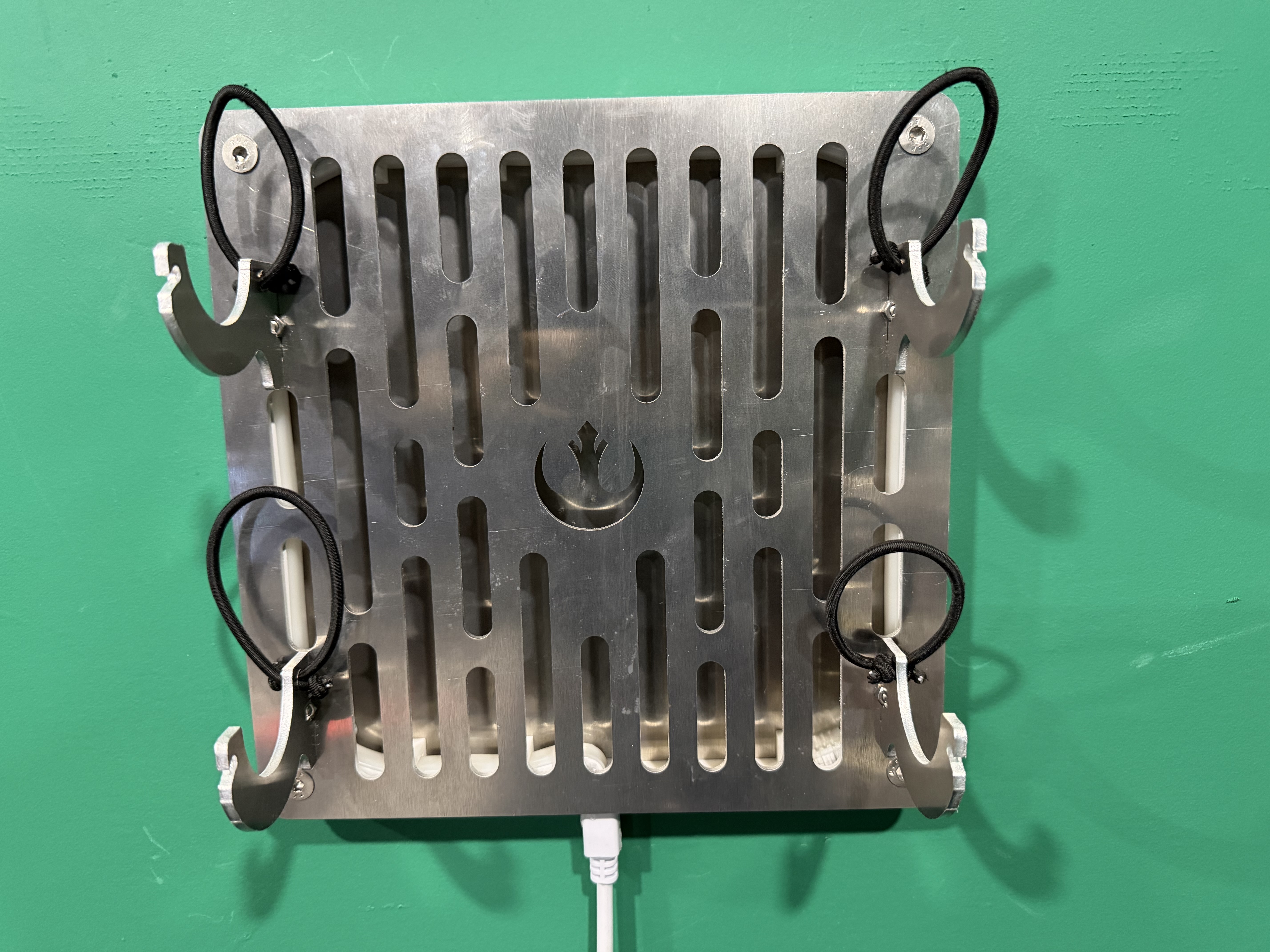

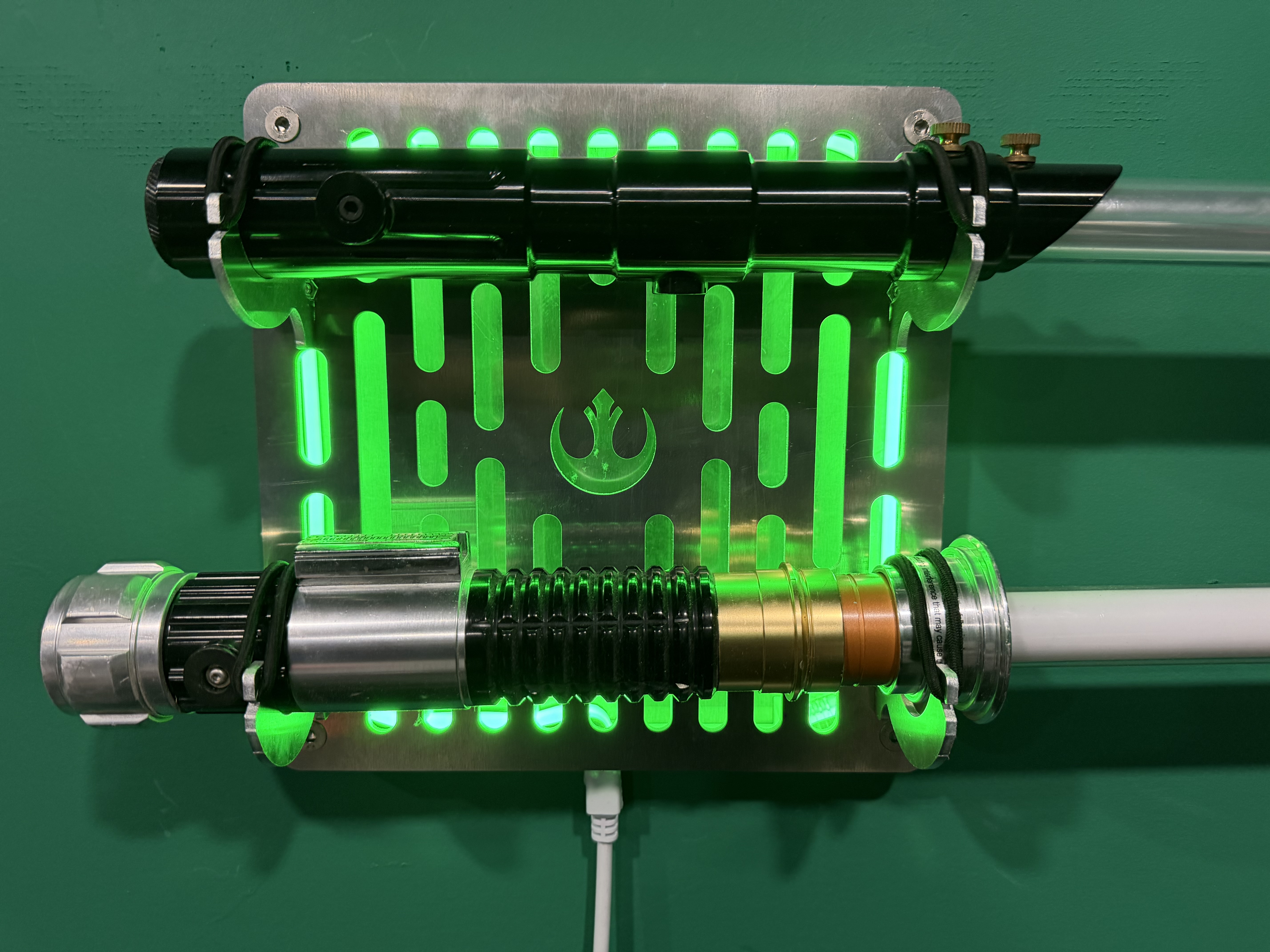

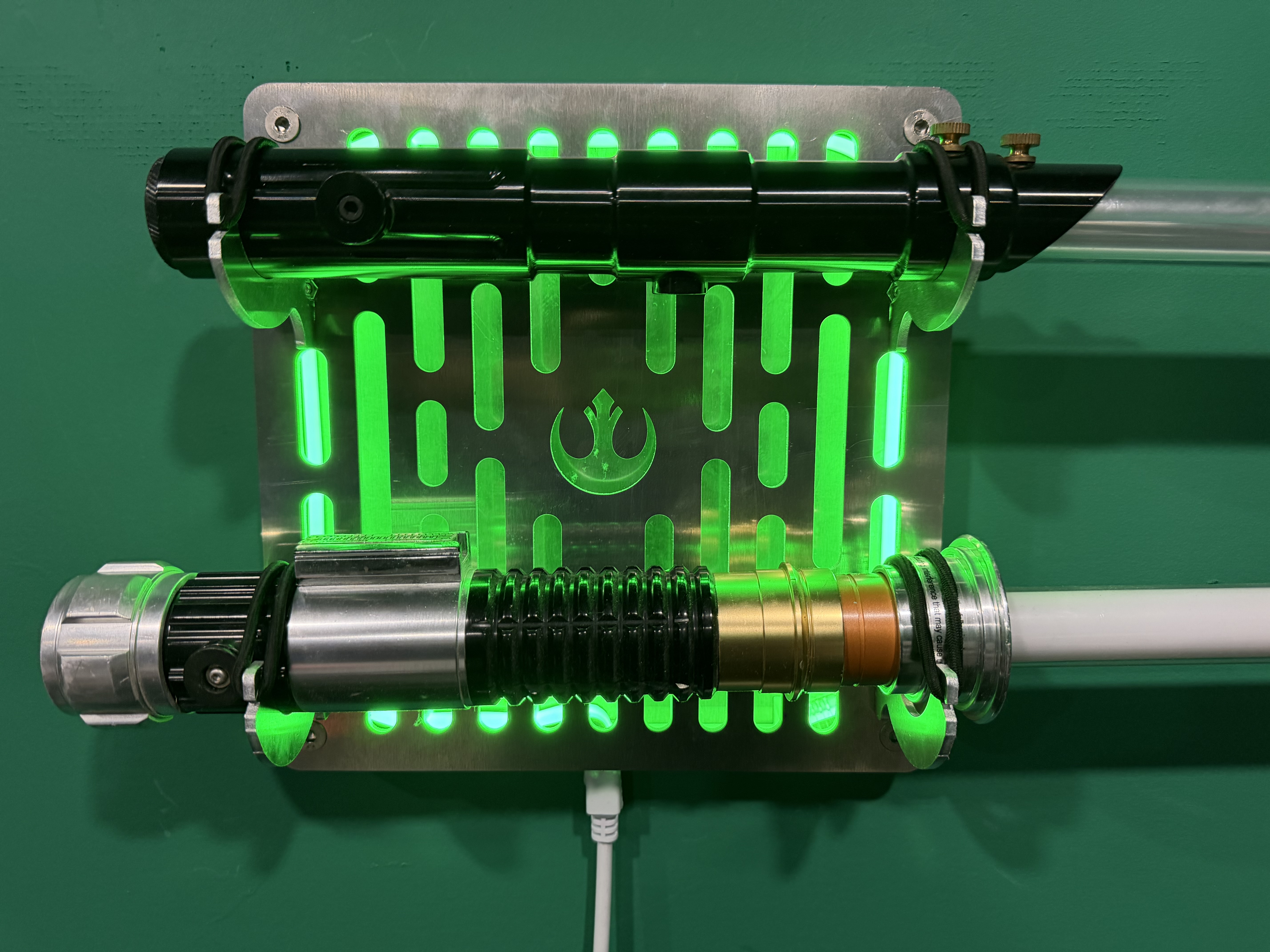

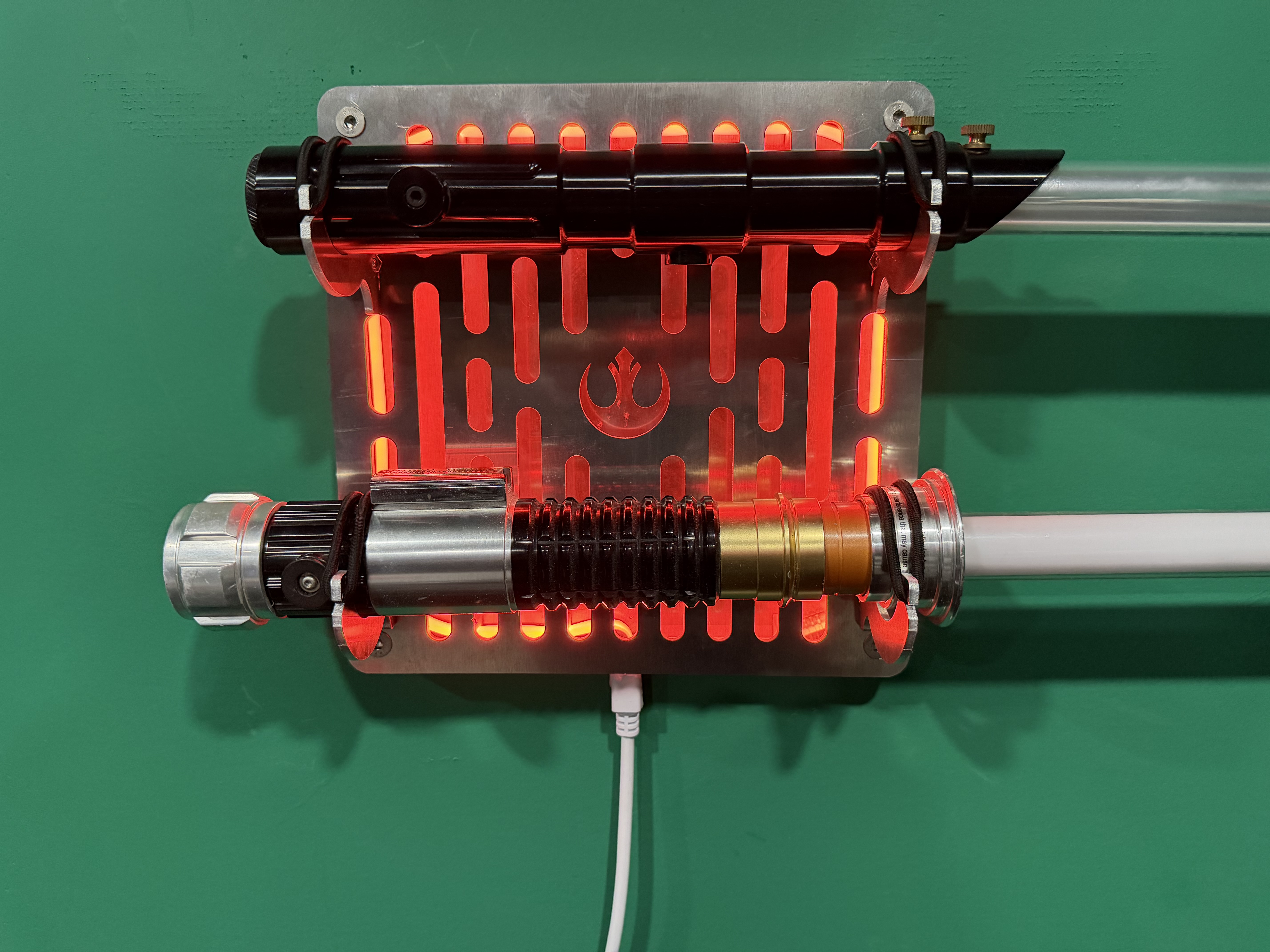

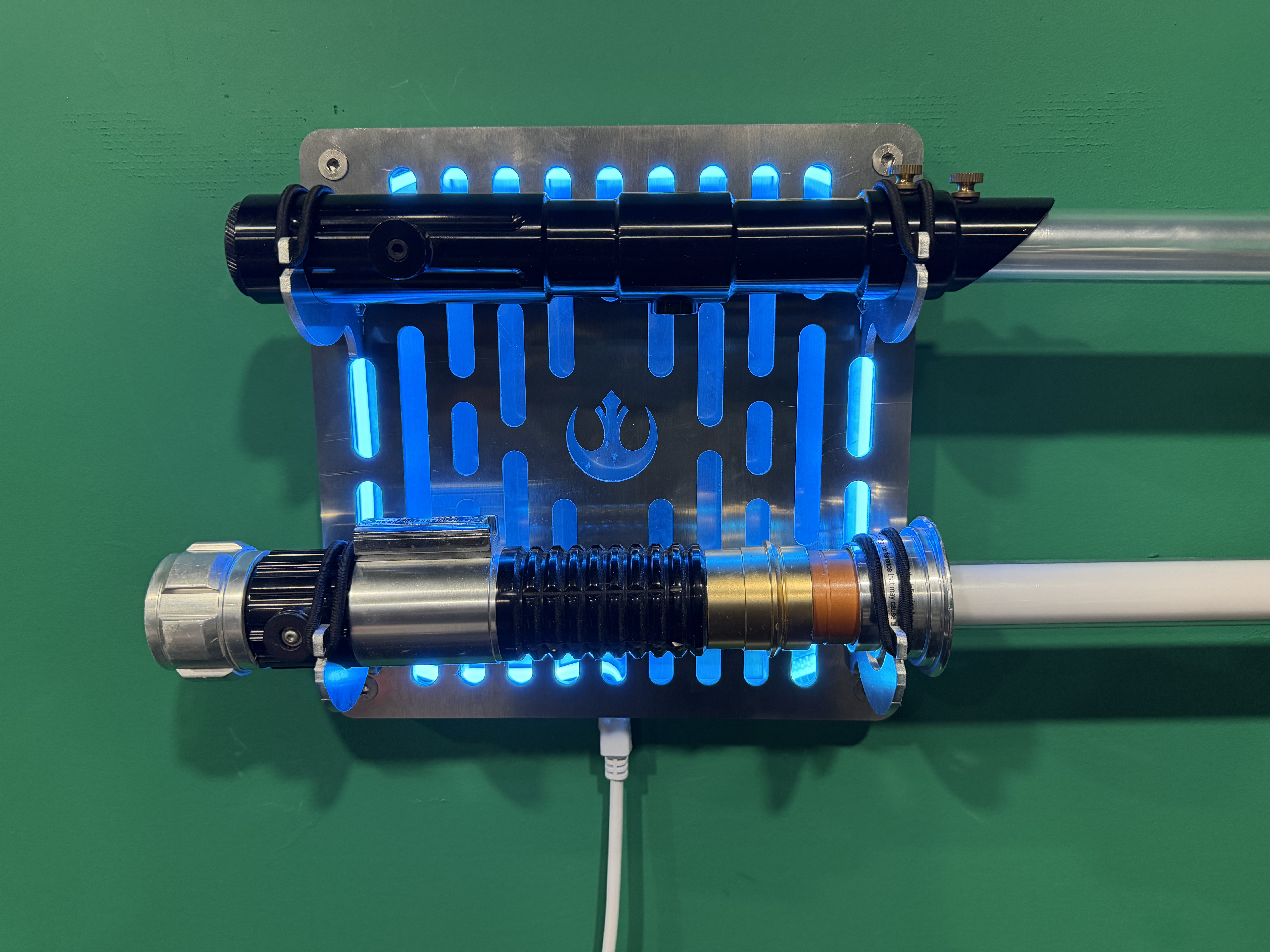

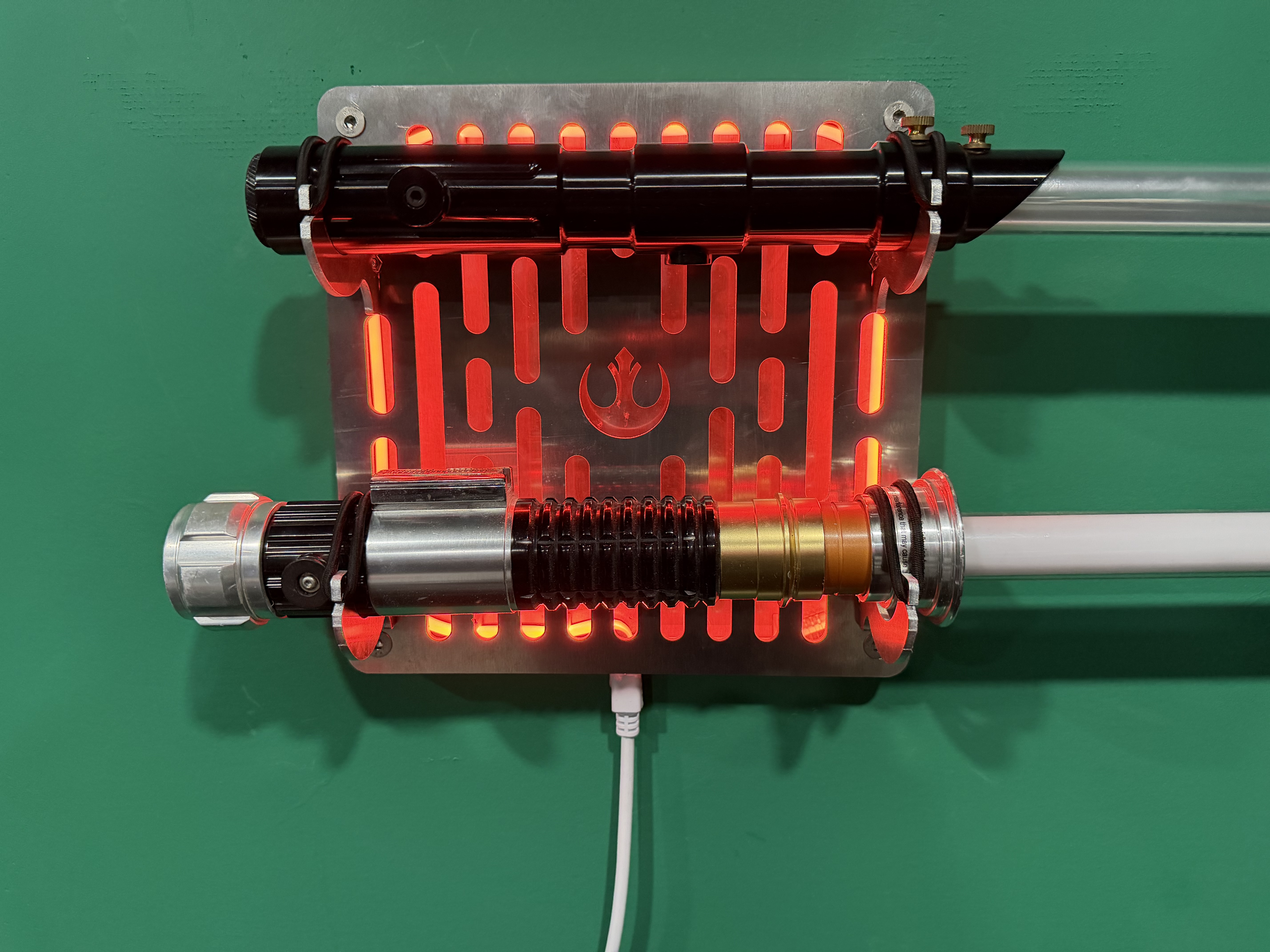

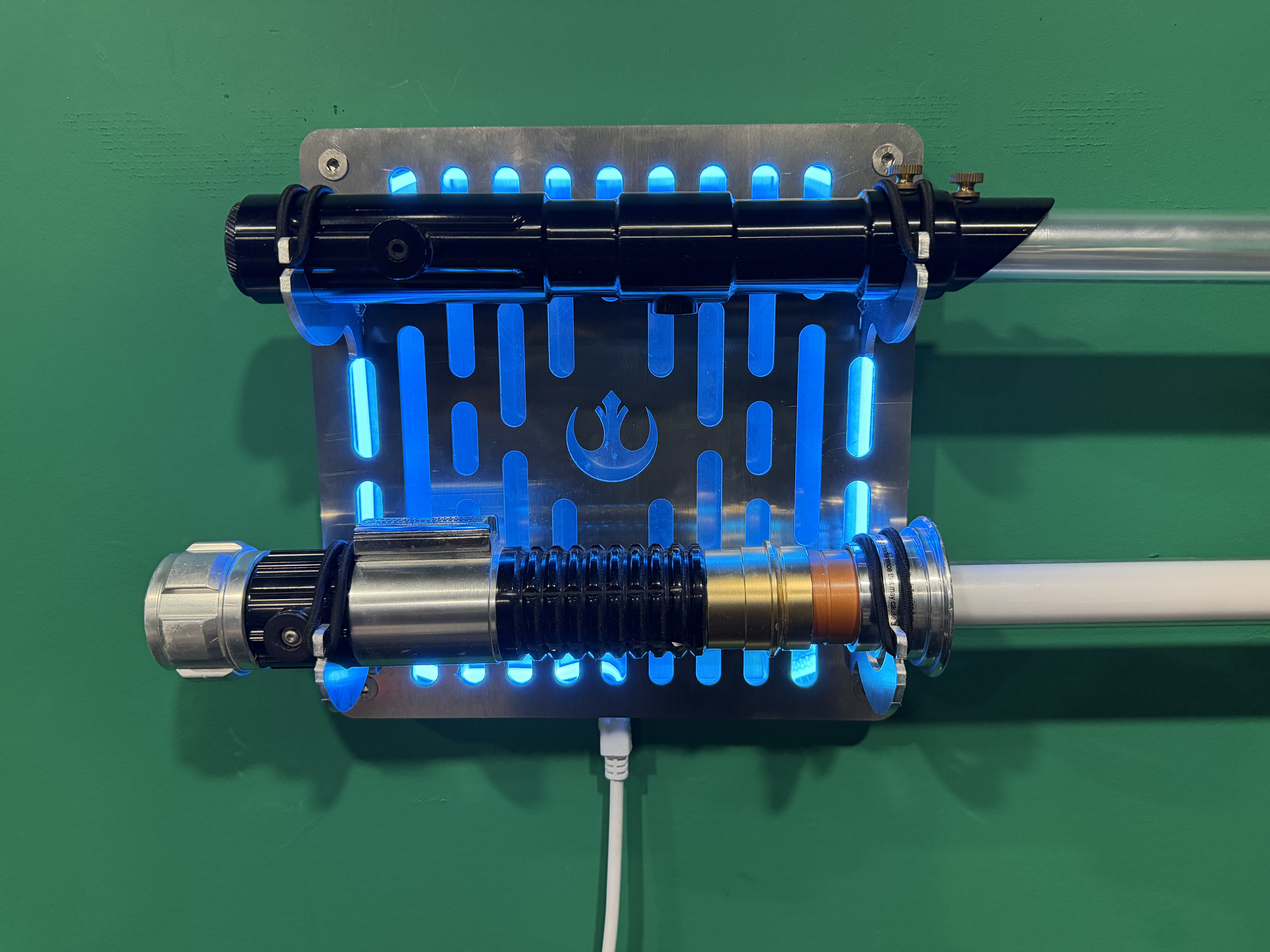

Step 5: Mount the top plate onto the kit and display sabers. (Bungies are optional if sabers do not balance properly)
