RGB LED light display

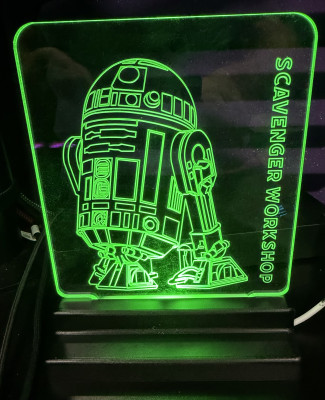

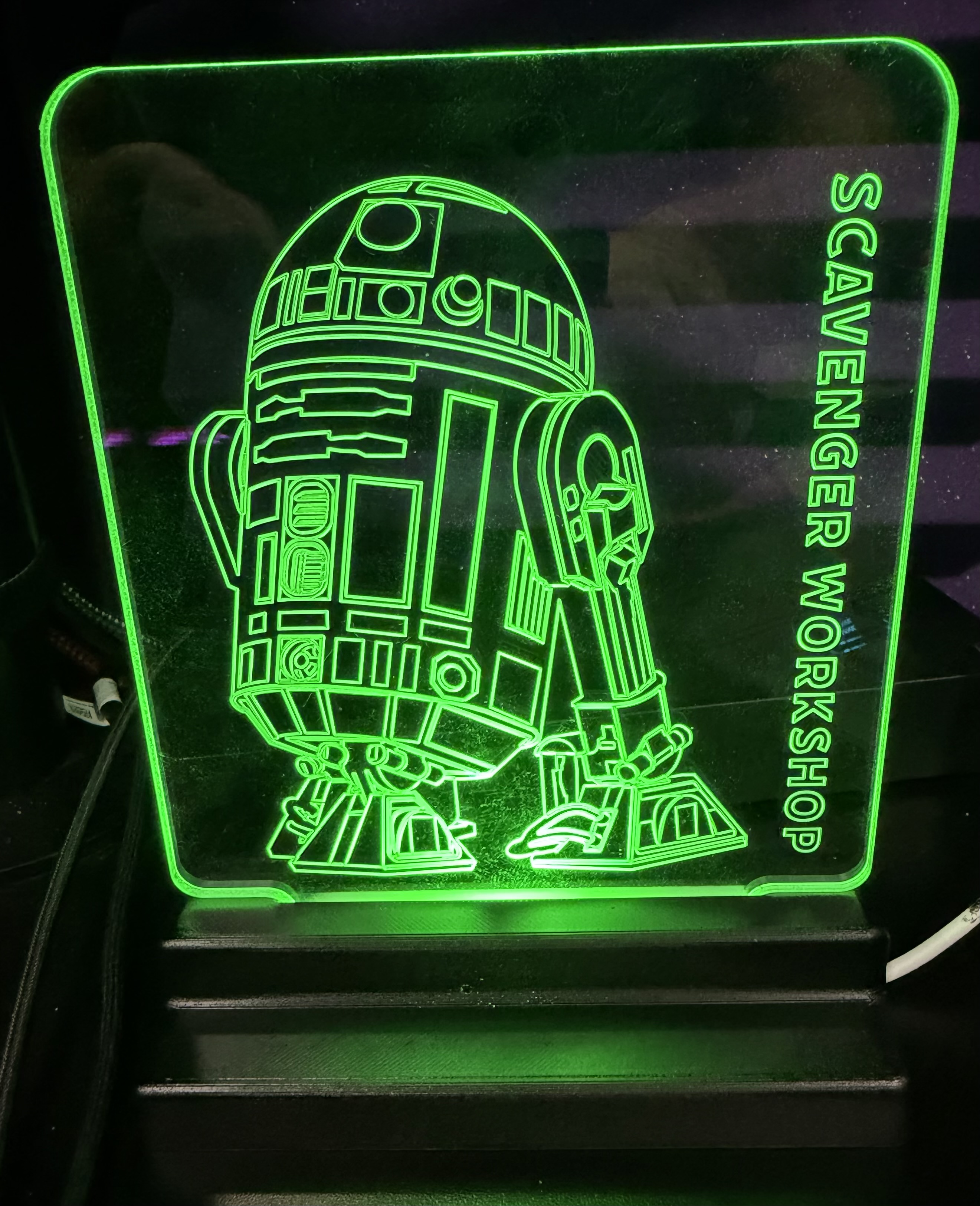

R2D2 Light display Template you can add whatever text you want to the side. I have included the LED from amazon the base plate as 3D printable or CNC machined with the Carvera.
G-Code for Makera Carvera
I have found that the stock from Makera varies in thickness so adjust as needed
DFX File for Makera Cam
LED-Display-R2D2-Name-DFX.dxf- (85.07 KiB) Downloaded 38 times
- Led-Display-R2D2-DFX.dxf
- (485.08 KiB) Downloaded 44 times
STL For 3D Print
- LED-Mount-STL.stl
- (159.16 KiB) Downloaded 44 times
Fusion CAD File
- LED-Display-R2D2-Fusion.f3d
- (1010.11 KiB) Downloaded 41 times
- LED-Mount-Fusion.f3d
- (203.95 KiB) Downloaded 40 times
LED Mount Step File
- LED-Mount-STEP.step
- (93.9 KiB) Downloaded 41 times
RGB LED with remote form Amazon
https://a.co/d/068pnDCC
Bits Used
Acrylic Etching
Step 1: Single Flute Engraving Bit 30 Degree * .02mm 1/8 shank
Step 2: Single Flute Bit 3.175mm * 12mm 1/8 shank
Bottom of LED Mount
Step 1: Single Flute Bit 3.175mm * 12mm 1/8 shank
Step 2: Single Flute Bit 2mm* 8mm 1/8 shank
Top of LED Mount
Step 1: Single Flute Bit 3.175mm * 25mm 1/8 shank
Cavera Controller Offset
X = 0 - Y = 0
